CUBE F0 Estimator

An open-source, noise-robust pitch tracker for speech, singing voice and instrumental music. The smallest model has 1.84M parameters and runs about 50 times faster than real time on one CPU thread.

Submitted to ICASSP 2027 · under review Eray Eren, Z. Wang, N. B. Shankar, K. Zhang, M. Shi, A. Alwan
Code & models Earlier work: FusedF0
+3.3 ptsraw pitch accuracy over RMVPE on out-of-domain corpora
1.84Mparameters in CUBE-T, 98% fewer than RMVPE
~50×faster than real time, one CPU thread
3 domainsspeech, singing voice, instrumental music

CUBE (Consensus U-Net Branchformer Estimator) estimates the fundamental frequency (F0) every 10 ms, together with a voiced/unvoiced decision. It is built to keep working when the audio is not clean: its accuracy holds up under white, pink, babble, ambient and music noise, and under reverberation.

It comes in four sizes. CUBE-L is the most accurate; CUBE-M, CUBE-S and CUBE-T are distilled from it, and CUBE-T is small enough for CPU and real-time use.

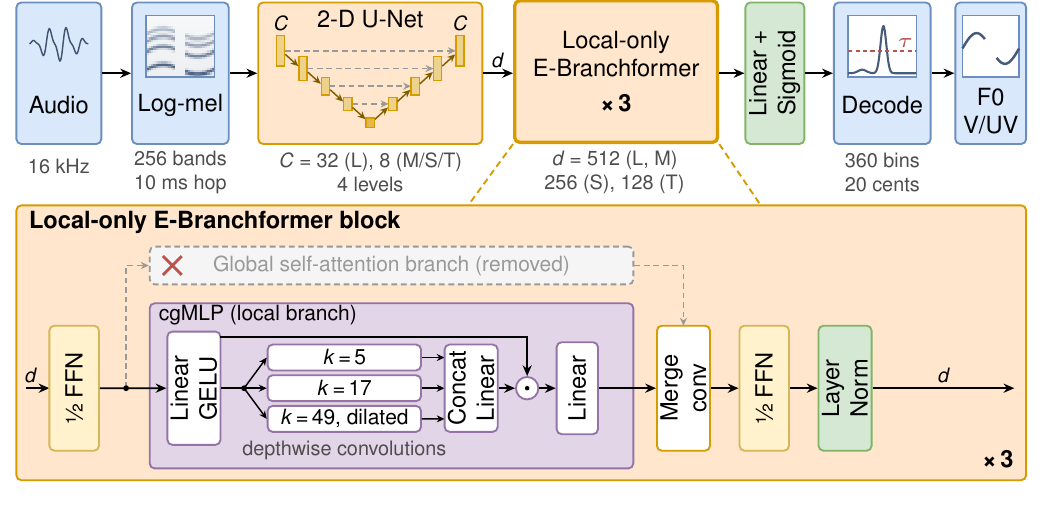

CUBE architecture: 16 kHz audio, 256-band log-mel spectrogram, a four-level 2-D U-Net, three local-only E-Branchformer blocks, and a linear layer with sigmoid over 360 pitch bins, decoded to F0 and voicing.
CUBE. A 2-D U-Net over the log-mel spectrogram, then three E-Branchformer blocks with the global self-attention branch removed, so only local cgMLP context (kernels of 5, 17 and 49 frames) models time.

How it works

  1. The 16 kHz waveform becomes a 256-band log-mel spectrogram with a 10 ms hop.
  2. A four-level 2-D U-Net processes the spectrogram and projects every frame to a vector.
  3. Three local-only E-Branchformer blocks model time. Global self-attention is removed, so only local context is used.
  4. A sigmoid layer scores 360 pitch bins, 20 cents apart, from 31.7 Hz to 2005.5 Hz. A frame is voiced when its peak score passes a threshold, and F0 is the score-weighted average around the peak.

Consensus labels. Training data is augmented with speech and singing resynthesized from F0 contours that several DSP pitch trackers agree on. No neural F0 estimator is used to make the training labels.

Results

Raw pitch accuracy (RPA, share of voiced frames within 50 cents) and voicing F1, in percent, averaged over six test corpora. Noisy averages seven conditions: six additive noise types from 20 to −10 dB SNR, plus measured reverberation.

Model Params (M) GMACs RPA clean RPA noisy F1 clean F1 noisy RTF, CPU 1 thread
CUBE-L 27.80 19.31 94.88 84.39 94.52 87.23 0.203
CUBE-M 22.19 5.31 94.69 83.94 94.36 87.24 0.055
CUBE-S 6.06 2.09 94.67 83.69 94.37 86.95 0.027
CUBE-T 1.84 1.25 94.65 83.03 94.39 86.83 0.019
RMVPE 90.40 7.67 94.30 80.58 93.89 84.50 0.080
FCPE 10.83 2.14 95.00 78.21 93.18 81.93 0.025

GMACs are for 2 s of audio. RTF is processing time divided by audio duration (lower is better), measured on a 10 s clip with batch size 1 in fp32. Every CUBE model beats RMVPE and FCPE in noise; CUBE-T does it with the lowest CPU cost of all six.

Try it

git clone https://github.com/errayeren/robustf0estimation.git
cd robustf0estimation && pip install .
cube-f0 input.wav --model cube-t --out f0.csv

import cube

model = cube.CUBE.from_pretrained("cube-t")   # or cube-l, cube-m, cube-s
y, sr = cube.load_audio("example.wav")
out = model.predict(y, sr)   # time_s, f0_hz, confidence, voiced

The code is MIT-licensed. The pretrained weights are CC BY-NC-SA 4.0 (non-commercial), because some training data is licensed for non-commercial use only. Training code and the consensus-labelling pipeline will be released when the paper is accepted.
